Target Darts Corona Light System Replacement Led Strip

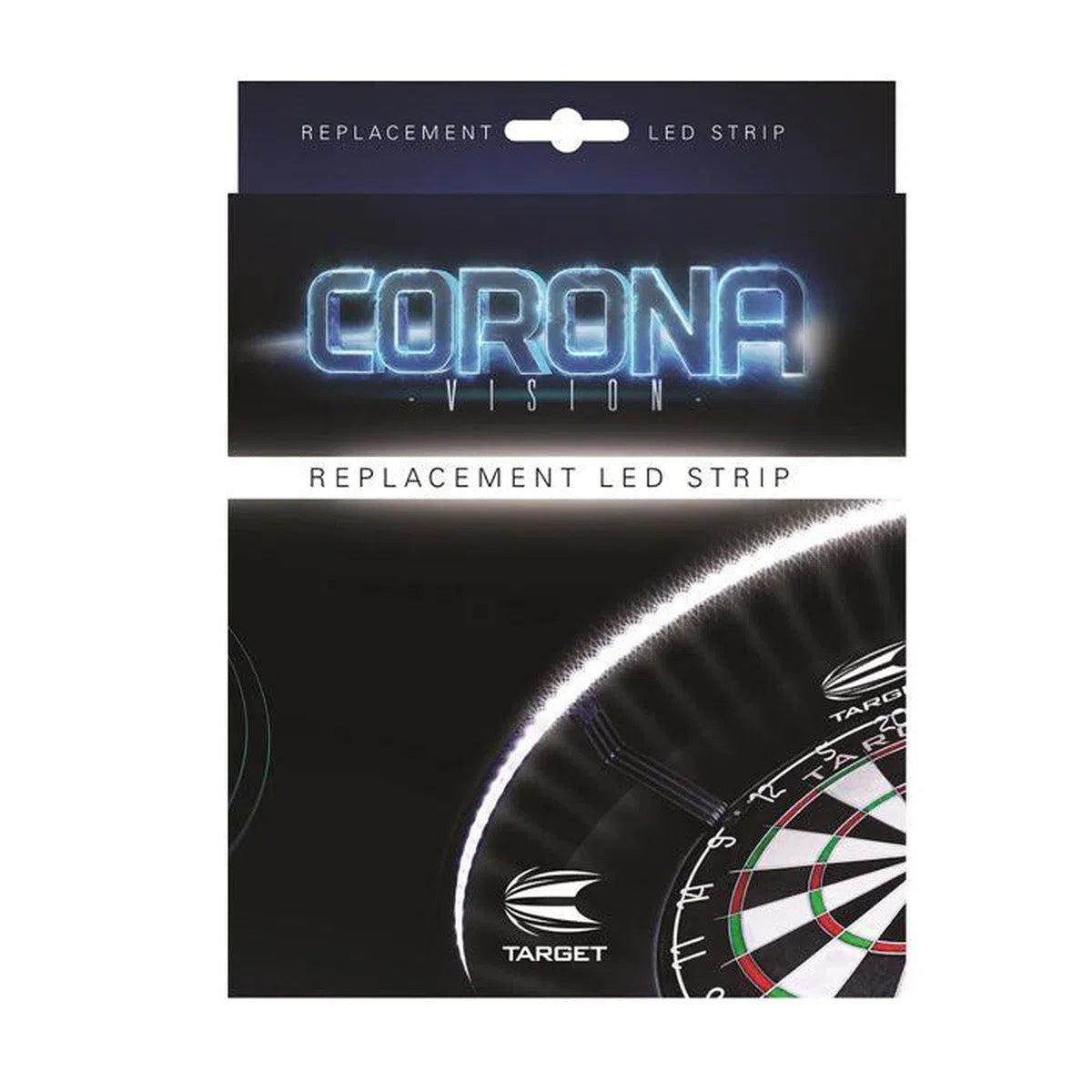

TARGET DARTS CORONA LIGHT LED STRIP REPLACEMENT

Brand: Target

Replacement LED light strip for the Target Darts Corona Vision
light.

• Peel broken LED strip from ring.
• Remove any loose residual adhesive left in ring. Leave in place the black tape on the inside of the ring covering the joints.
• Align the cable of the new LED strip with the cut-out in the plastic ring and secure in place.
• Peel off approximately 10cm of protective film from the LED strip at the cable end, exposing the adhesive foam.
• Gently lay the LED strip into the plastic ring applying gentle
• pressure.
• Work your way around the ring, peeling off protective film as you go.
• The free end of the LED strip should coincide approximately with the cable end when fully laid in. Remove cable from cut-out,
• lift start of the LED strip and lay the free end of the strip into the ring.
• Then lay the cable end of the strip on top of the free end of the strip and relocate cable back into plug.
